Pro Series Short-Wavelength Pyrometers
Short-Wavelengths Reduce Error From Emissivity Variations
For most applications, selecting the shortest practical wavelength is recommended. Shorter wavelengths result in smaller errors. In fact, short-wavelength sensors can be 4-20 times less sensitive to emissivity variation compared to long-wavelength sensors.
Short-Wavelengths Can View Through Optical Obstructions
Wavelength selection is a critical factor in Williamson’s short-wavelength technology. By choosing the correct wavelength span, you can view through water, steam,flames, combustion gasses, plasmas, and other common industrial interferences.
Temperature Limits:
0 to 5500°F / 0 to 3040°C (actual ranges vary by model)
Spectral Response:
0.9μm, 1.6μm, 2.2μm, 2.9μm
Optical Resolution:
Range of optics selectable by model.
Accuracy:
0.25% of reading or 2°C whichever is greater
Repeatability:
Better than 1°C
Emissivity:
0.010 to 1.500
Common Applications
- Low Temp Metals
- Thermal Reactors
- Melters
- Boilers
- Furnaces
Product Specifications
Options & Accessories

IM – Interface Module

SB – Swivel Bracket

WC – Water Cooling Plate

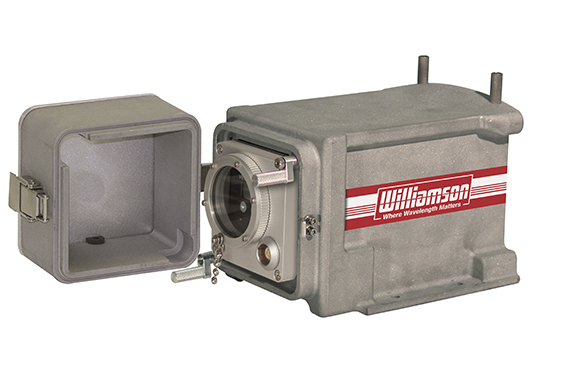

PCJ – Protective Cooling Jacket

AP – Air Purge

FMxx – Flange Mounts

Cable with Heavy Duty ArmorGuard (AG)

Cable with Stainless Steel Braid (SSB)

Standard Fiber Optic Cable (Gn and Qn)

Monofilament Cable (Mn)
Consult with one of Williamson’s Temperature Experts
We would love to discuss your temperature measurement application with you.
